mdadash.backend.analyses.rog

Radii of Gyration

Classes

ROG()

ROG

class mdadash.backend.analyses.rog.ROG

Bases: WidgetBase

ROG

This widget plots the Radii of Gyration of a selection.

Inputs

Run frequency

The frequency with which the widget is run - every-frame or batch

Default: every-frame

Run mode

The mode in which the widget is run - serial or parallel

Default: serial

Selection

MDAnalysis selection phrase

Default: protein

Periodic

Select with periodic boundary conditions

Default: True

Updating

Update selection during each timestep

Default: False

Custom title

Custom title for the plot

Default: ‘’

Max values

Max values to show in plot

Default: 100

X-axis

X-axis value - time or step

Default: time

Output

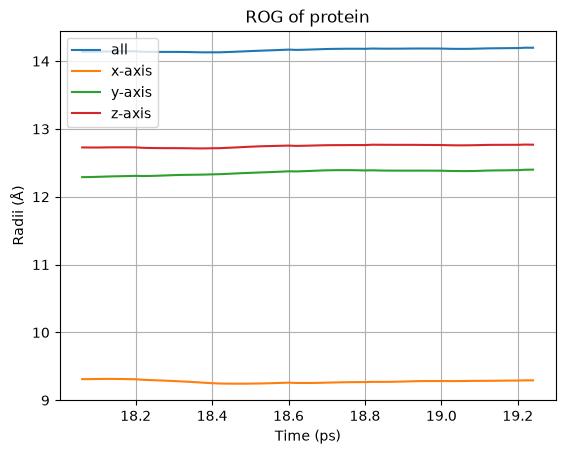

Here is an example output plot of this widget:

Tip

This widget supports batching and can run in parallel

apply_parallel_results(values)

apply_parallel_results() handler

description = 'Radii of Gyration of a selection'

get_parallel_job()

get_parallel_job() handler

name = 'ROG'

on_input_change(attribute, _old_value, new_value)

on_input_change() handler

on_post_connect()

on_post_connect() handler

on_post_create()

on_post_create() handler

run_batch()

run_batch() handler

run_every_frame()

run_every_frame() handler
