mdadash.backend.analyses.janin

Janin plot (Dihedral angles analysis)

Classes

JaninPlot()

Janin Plot
class mdadash.backend.analyses.janin.JaninPlot[source]

Bases: WidgetBase

Janin Plot

This widget uses MDAnalysis.analysis.dihedrals.Janin for dihedral angles analysis and creates a Janin plot.

Inputs

Selection
MDAnalysis selection phrase

Default: protein

Show reference
Show allowed and marginally allowed regions

Default: True

Custom title
Custom title for the plot

Default: ‘’

Output

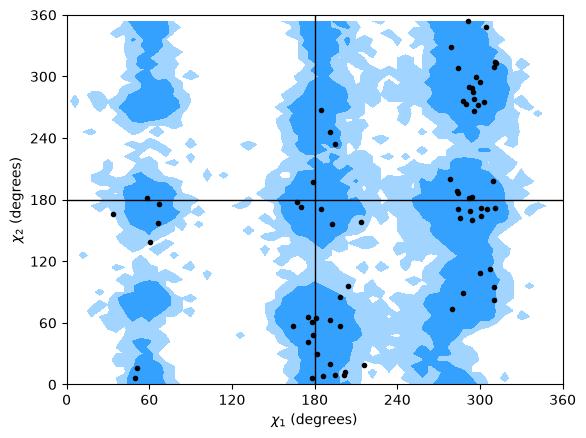

Here is an example output plot of this widget:

Janin Plot output
description = 'Dihedral angles analysis using Janin plot'
name = 'Janin Plot'
on_input_change(attribute, _old_value, new_value)[source]

on_input_change() handler

on_post_connect()[source]

on_post_connect() handler

run_every_frame()[source]

run_every_frame() handler
